Table of Contents


Products Covered

  • Road Warrior Bundle
  • Transit DUO (or other Dual Modem Router)
  • Parsec Husky 7-in-1 Antenna
  • Poynting 7 and 1 Antenna


Summary

Parsec's Husky 7-in-1 antenna has exceptional performance. To maximize the omnidirectional performance of the antenna on both Modem 1 and Modem 2 it is recommended you hook up the antenna leads in the configuration outlined in this article.


Note this article covers the Transit DUO Pro dual modem router. If you have a single modem version such as the Transit CAT 18 or Transit 5G, BR1 Pro series the connections are very similar but may have slightly different labels on the device.



Update March 2022: Parsec has revised their previous recommendations on which antenna wires to connect to the following information outlined below. Please update your wiring to match below for optimal performance.

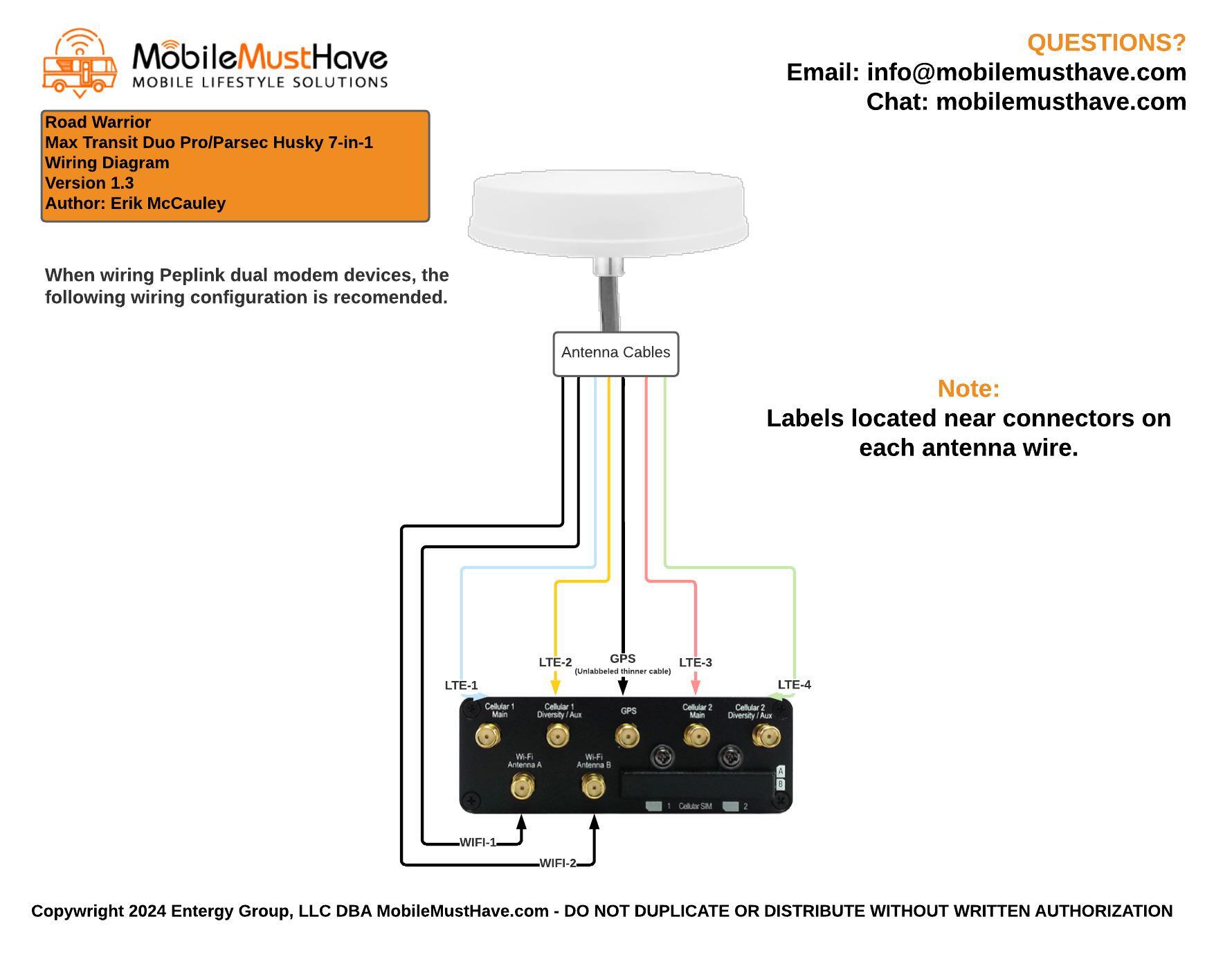

Dual Modem (Transit DUO and similar) Parsec Husky 7-in-1 Antenna Wiring Diagram

(Road Warrior Bundle)


In order to maximize the performance of your antenna hook up the antenna wires coming down from the Husky in the following configuration:

Installation-Instructions_Husky

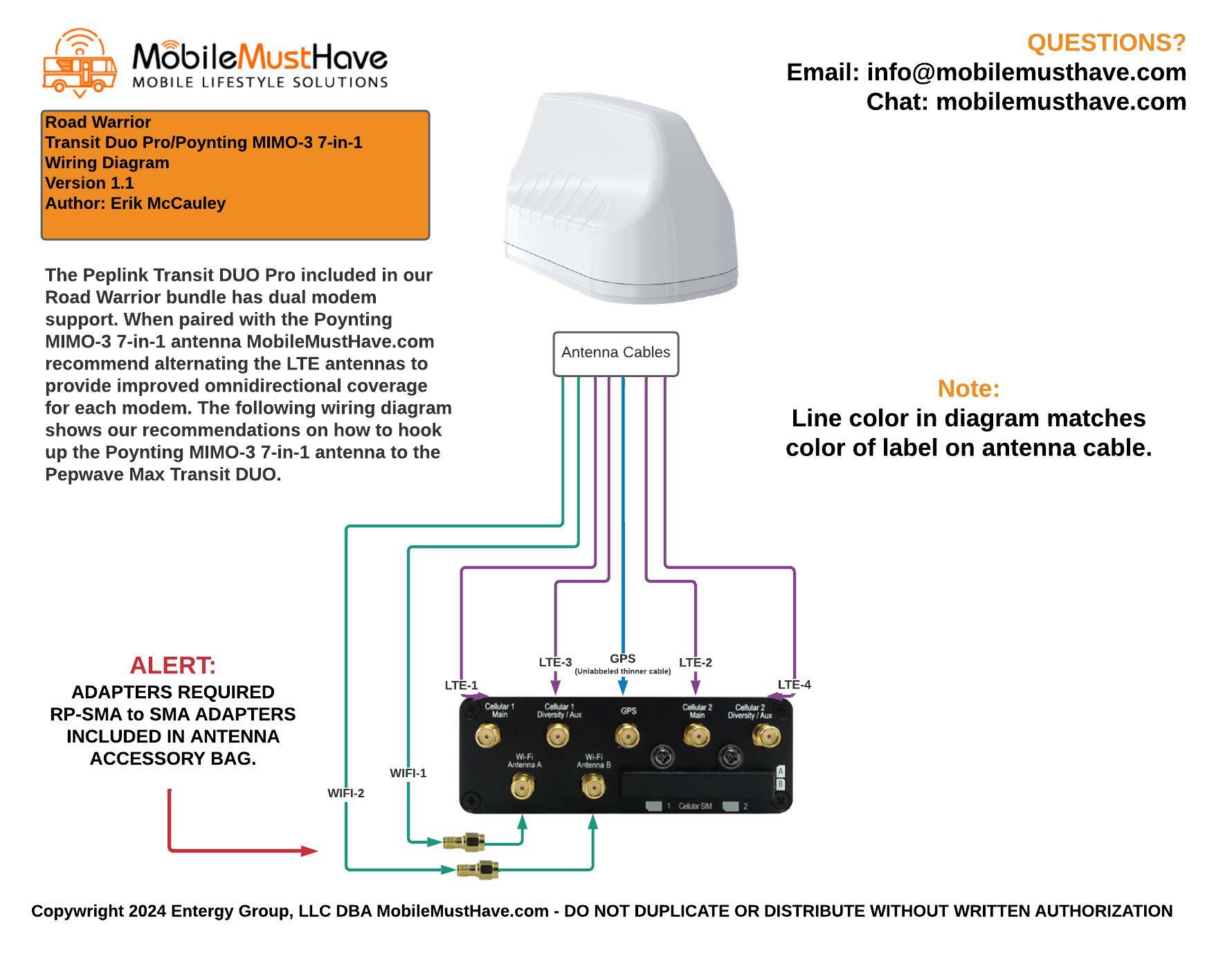

Dual Modem (Transit DUO and similar) & Poynting 7-in-1 Antenna Wiring Diagram
(Road Warrior Bundle)


In order to maximize the performance of your antenna hook up the antenna wires coming down from the Poynting 7 in 1 in the following configuration:


PDF Downloads

You may also download a PDF version of this diagram. The PDF version is attached to this article.


Requesting Assistance

If you feel you are not getting anywhere or there is another issue you can always reach out to our team directly by initiating a ticket here on the support portal or by emailing [email protected]
