Products Covered


*Can only be used with:

STARLINK - Standard Kit (Gen 3)


Summary

In this article, you'll find instructions for how to convert your Standard Gen-3 Starlink dish to run on DC power. Our Standard Gen conversion kit enables you to convert your Starlink Gen 3 (not the HP, Mini, or articulating dish) to run on DC power only, eliminating the need for the Starlink router/power supply that relies on AC power. This kit is designed to work with the factory Starlink cable, and no cutting is needed. This kit accepts 9-30v DC power input via the DC power terminal and outputs 56v to the Starlink dish. The kit also includes an optional 12v power output cable which can be used to power a Peplink router for a simplified solution with only one 12v power cable needed from your battery.



Disclaimer: This product has been tested by MobileMustHave staff to be functional and reliable. This kit is not designed to be used in conjunction with the Starlink router which may also output power and create an unsafe condition. This kit is also not designed to be operated with other PoE switches or accessories as Starlink uses proprietary passive PoE technology.



Compatibility Disclaimer: This kit and these instructions only apply to the Standard Gen 3 Starlink kit. Please reference the links at the bottom of this article for instructions on how to convert High Performance Starlink and the Starlink Mini to DC.



Before We Get Started, The Basics

What's Inside the Kit?

  • Starlink DC Power Conversion Kit - High Wattage Step-Up converter and Starlink Passive 8 wire POE Injector - (accepts DC Input Voltage of 12v and outputs via POE 48v at a max of 200W)
  • Basic Wiring diagram


Optional Accessories:

  • USB-A to 4-PIN Peplink Power Cable
    •  For powering Peplink routers with 4-pin power connectors.
  • 6 Circuit DC Fuse Block
    • You should always properly fuse any DC accessory such as this one as close to the battery as possible. This fuse block (called a load center) can be used to protect your electronics (and your RV). Properly fusing DC circuits protects sensitive equipment from damage, avoids damage to wires and limit risk of fire. All DC devices should be fused in accordance with the manufacturer electrical power specifications.



      Kit Requirements:


  • Starlink Gen 3 Dish (see pictures for compatible dish)
  • 9-36 fused Power Input from vehicle batteries. Note this unit can draw up to 200W and required proper cable gauges and fuses to avoid excess heat or an unsafe condition.  Typically, 10-14 gauge on 12-24v input with a fused home run from house battery is required (possibly thicker wire for longer runs, consult an electrician for proper wiring sizing on DC power systems).



SAFETY TIP: As with all electrical installations, make sure to turn off all AC and DC power, properly wire and fuse your install & be safe! Always check your input power with a multi-meter before connecting any accessories. RED wire to 12v+ and Black to 12v- Negative typically. Reversing your power inputs may lead to damage to equipment not covered by warranty.



Set up Instructions (No cable cutting needed)


  1. Connect a fused DC power cable to a 12v-24v DC Power source (House Battery/Fuse Block) and to the power input terminal on the conversion unit. RED wire to 12v+ and the  Black to 12v- Negative typically however always check with a multimeter before attaching any accessory to ensure the polarity is correct.
    • Recommended power cables: use fused 10–14 gauge wire (possibly thicker for longer runs)
  2. Connect your Starlink cable going to the dish to the port labeled "POE" on the conversion unit

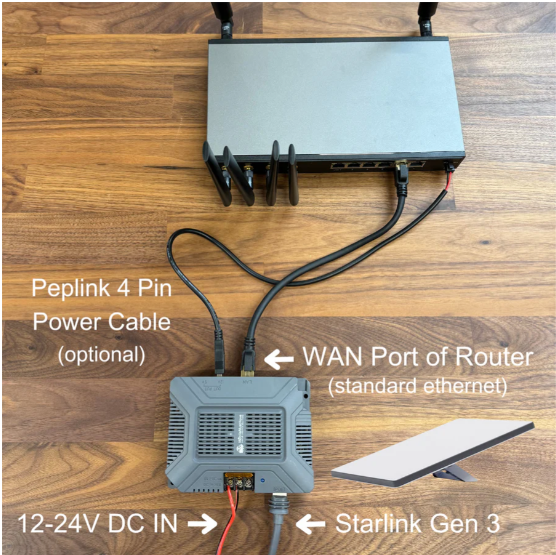

  3. Use a standard ethernet cable to connect the LAN output from the DC power converted to your Peplink router's WAN port as shown in the illustration below.
  4. and (Optional) If you want to use the conversion kit to power your Peplink router as well; use the optional USB-A to 4-pin power adapter. Hook up the 4-pin end to your Peplink's power input, use the USB-A side of the cable to connect to the USB-A port on the DC Power Converter.





Other Conversion Guides:

Have a different Starlink kit? Here are the links to our DC conversion guides for the other kits:

Starlink High-Performance DC Conversion

Starlink Mini DC Conversion
